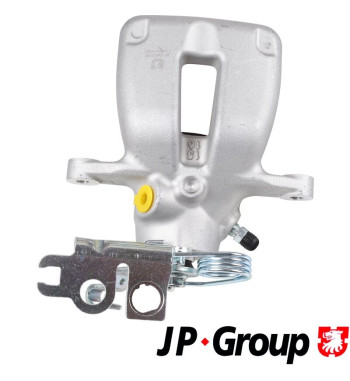

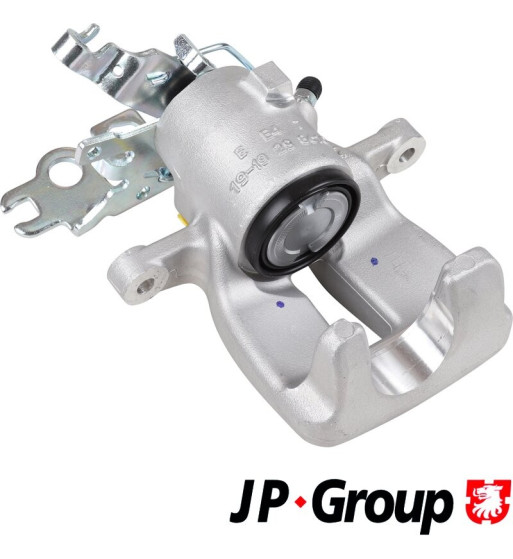

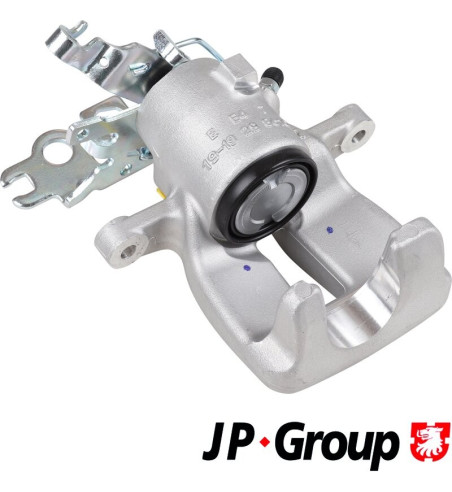

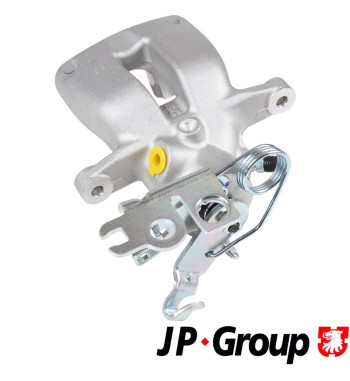

Brake Caliper

Brake Caliper JP GROUP Brakes

TECHNICAL DATA

Fitting Position: Rear Axle Right

Manufacturer Restriction: TRW

Brake caliper piston diameter [mm]: 41

Brake Caliper Type: Brake Caliper with integrated parking brake;Brake Caliper (1 piston)

for brake disc diameter [mm]: 256

for brake disc thickness [mm]: 12

Brake Disc Type: Solid

for PR number: 1LJ;1ZE

OEMS

2K0615424 AUDI, 2K0615424A AUDI, 2K0615424B AUDI, 2K0615424 SEAT, 2K0615424A SEAT, 2K0615424B SEAT, 2K0615424 SKODA, 2K0615424A SKODA, 2K0615424B SKODA, 2K0615424 VW, 2K0615424A VW, 2K0615424B VW, 2K0615424 VAG, 2K0615424A VAG, 2K0615424B VAG,

LINKAGES

Manufacturer	Model series	Model Version	Year	Engine size	Fuel type	Body type	BHP
VW	Caddy	Caddy III	2008-11-01-2010-08-31	1,9	Diesel	Box Body/MPV	105
VW	Caddy	Caddy III	2008-11-01-2010-08-31	1,9	Diesel	Box Body/MPV	105
VW	Caddy	Caddy III	2004-03-01-2006-05-31	1,4	Petrol	MPV	75
VW	Caddy	Caddy III	2004-03-01-2006-05-31	1,4	Petrol	Box Body/MPV	75
VW	Caddy	Caddy III	2004-04-01-2015-05-31	1,6	Petrol	Box Body/MPV	102
VW	Caddy	Caddy III	2004-04-01-2015-05-31	1,6	Petrol	Box Body/MPV	102
VW	Caddy	Caddy III	2004-04-01-2015-05-31	1,6	Petrol	MPV	102
VW	Caddy	Caddy III	2004-04-01-2015-05-31	1,6	Petrol	MPV	102
VW	Caddy	Caddy III	2004-03-01-2010-08-31	2,0	Diesel	MPV	70
VW	Caddy	Caddy III	2004-03-01-2010-08-31	2,0	Diesel	Box Body/MPV	70
VW	Caddy	Caddy III	2004-04-01-2010-08-31	1,9	Diesel	Box Body/MPV	105
VW	Caddy	Caddy III	2004-04-01-2010-08-31	1,9	Diesel	Box Body/MPV	105
VW	Caddy	Caddy III	2004-04-01-2010-08-31	1,9	Diesel	MPV	105
VW	Caddy	Caddy III	2004-04-01-2010-08-31	1,9	Diesel	MPV	105
VW	Caddy	Caddy III	2005-09-01-2010-08-31	1,9	Diesel	MPV	75
VW	Caddy	Caddy III	2006-04-01-2015-05-31	2,0	CNG	MPV	109
VW	Caddy	Caddy III	2006-04-01-2015-05-31	2,0	CNG	MPV	109
VW	Caddy	Caddy III	2006-04-01-2015-05-31	2,0	CNG	Box Body/MPV	109
VW	Caddy	Caddy III	2006-04-01-2015-05-31	2,0	CNG	Box Body/MPV	109
VW	Caddy	Caddy III	2006-05-01-2010-08-31	1,4	Petrol	MPV	80
VW	Caddy	Caddy III	2006-05-01-2010-08-31	1,4	Petrol	Box Body/MPV	80
VW	Caddy	Caddy III	2005-09-01-2010-08-31	1,9	Diesel	Box Body/MPV	75
VW	Caddy	Caddy III	2007-09-01-2010-08-31	2,0	Diesel	MPV	140
VW	Caddy	Caddy III	2007-09-01-2010-08-31	2,0	Diesel	MPV	140
VW	Caddy	Caddy III	2007-09-01-2010-08-31	2,0	Diesel	Box Body/MPV	140
VW	Caddy	Caddy III	2007-09-01-2010-08-31	2,0	Diesel	Box Body/MPV	140
VW	Caddy	Caddy III	2008-05-01-2010-08-31	1,9	Diesel	MPV	105
VW	Caddy	Caddy III	2008-05-01-2010-08-31	1,9	Diesel	MPV	105
