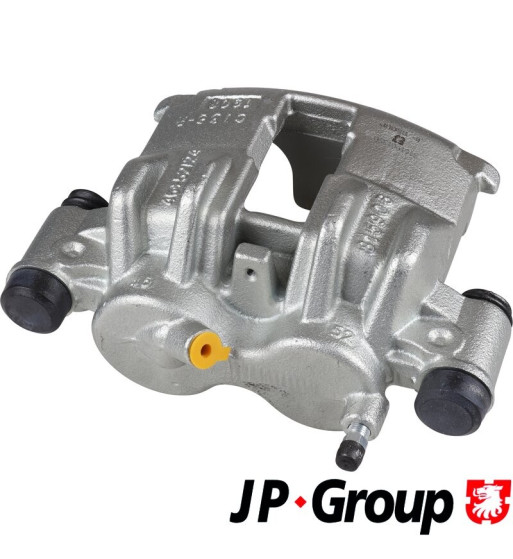

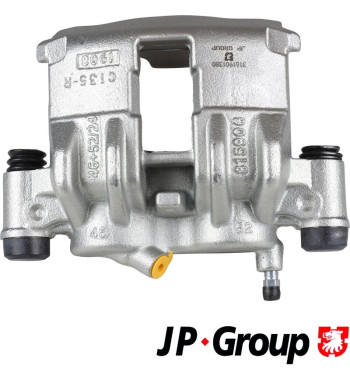

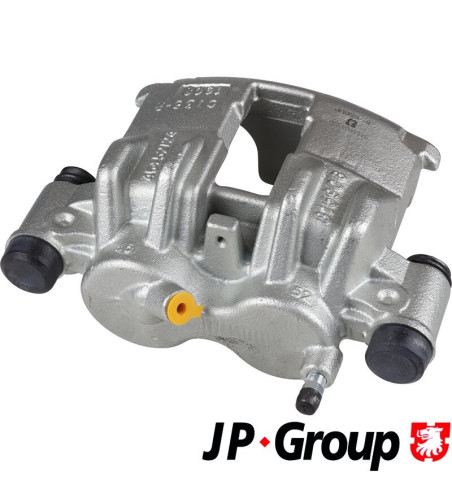

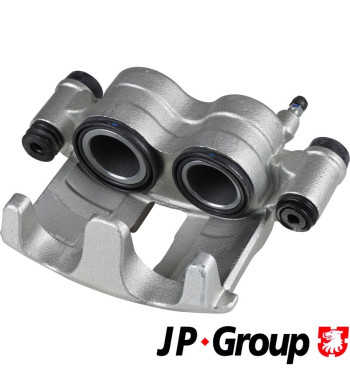

Brake Caliper

Brake Caliper JP GROUP Brakes

TECHNICAL DATA

Fitting Position: Front Axle Right

Material: Grey Cast Iron

Diameter [mm]: 46

Supplementary Article/Info 2: without holding frame

Quality: Remanufactured

Braking/Drive Dynamics: for vehicles with ABS

Manufacturer Restriction: BREMBO

paired article number: BC-1429L

Brake caliper piston diameter [mm]: 46;52

Brake Caliper Type: Floating Caliper;Brake Caliper (2 pistons)

for brake disc diameter [mm]: 300

for brake disc thickness [mm]: 24

Brake Disc Type: Vented

Diameter 2 [mm]: 52

Brake caliper piston diameter 2 [mm]: 52

Brake caliper piston diameter 1 [mm]: 46

OEMS

1607378380 CITROËN, 4401F1 CITROËN, 4401G7 CITROËN, 4401J3 CITROËN, 4401N3 CITROËN, 735289108 FIAT, 735361983 FIAT, 77362707 FIAT, 77364462 FIAT, 9949424 FIAT, 4401F1 PEUGEOT, 4401G7 PEUGEOT, 4401J3 PEUGEOT, 4401N3 PEUGEOT,

LINKAGES

Manufacturer	Model series	Model Version	Year	Engine size	Fuel type	Body type	BHP
Citroën	Jumper	Jumper 230	1994-08-01-2002-04-30	2,5	Diesel	Bus	103
Citroën	Jumper	Jumper 230	1994-02-01-2002-04-30	2,0	Petrol	Bus	109
Citroën	Jumper	Jumper 230	1994-08-01-2002-04-30	2,5	Diesel	Bus	86
Peugeot	Boxer	Boxer I	1996-07-01-2002-04-30	2,5	Diesel	Bus	103
Citroën	Jumper	Jumper 230	1996-08-01-2002-04-30	2,5	Diesel	Bus	86
Citroën	Jumper	Jumper 230	1996-08-01-2002-04-30	2,5	Diesel	Bus	103
Citroën	Jumper	Jumper 230	1996-12-01-2000-11-30	2,5	Diesel	Bus	107
Citroën	Jumper	Jumper 230	1996-12-01-2000-11-30	2,5	Diesel	Bus	107
Citroën	Jumper	Jumper 230	1994-03-01-2002-04-30	2,0	Petrol	Van	109
Citroën	Jumper	Jumper 230	1994-03-01-2002-04-30	2,5	Diesel	Van	86
Citroën	Jumper	Jumper 230	1994-03-01-2002-04-30	2,5	Diesel	Van	103
Citroën	Jumper	Jumper 230	1999-01-01-2002-02-28	2,8	Diesel	Bus	87
Citroën	Jumper	Jumper 230	1999-01-01-2002-02-28	2,8	Diesel	Platform/Chassis	87
Peugeot	Boxer	Boxer I	1999-01-01-2002-02-28	2,8	Diesel	Bus	87
Peugeot	Boxer	Boxer I	1999-01-01-2002-02-28	2,8	Diesel	Van	87
Peugeot	Boxer	Boxer I	1999-01-01-2002-02-28	2,8	Diesel	Platform/Chassis	87
Citroën	Jumper	Jumper 230	1994-03-01-2002-04-30	2,5	Diesel	Platform/Chassis	86
Citroën	Jumper	Jumper 230	1994-03-01-2002-04-30	2,5	Diesel	Platform/Chassis	103
Citroën	Jumper	Jumper 230	1996-12-01-2000-11-30	2,5	Diesel	Van	107
Citroën	Jumper	Jumper 230	1994-03-01-2002-04-30	2,0	Petrol	Platform/Chassis	109
Citroën	Jumper	Jumper 230	1996-12-01-2002-04-30	2,5	Diesel	Platform/Chassis	107
Citroën	Jumper	Jumper 230	2000-03-01-2002-04-30	2,5	Diesel	Platform/Chassis	86
Citroën	Jumper	Jumper 230	2000-03-01-2002-04-30	2,5	Diesel	Platform/Chassis	107
Citroën	Jumper	Jumper 230	2000-03-01-2000-11-30	2,5	Diesel	Van	107
Citroën	Jumper	Jumper 230	2000-03-01-2002-04-30	2,5	Diesel	Van	86
Citroën	Jumper	Jumper 230	2000-09-01-2002-04-30	2,8	Diesel	Bus	128
Citroën	Jumper	Jumper 230	2000-09-01-2002-04-30	2,8	Diesel	Bus	128
Citroën	Jumper	Jumper 230	2000-09-01-2002-04-30	2,8	Diesel	Platform/Chassis	128
Citroën	Jumper	Jumper 230	2000-09-01-2002-04-30	2,8	Diesel	Van	128
Citroën	Jumper	Jumper 230	2000-09-01-2002-04-30	2,8	Diesel	Van	128
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,0	Petrol	Bus	110
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,0	Diesel	Bus	84
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,2	Diesel	Bus	101
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,8	Diesel	Bus	128
Fiat	Ducato	Ducato (244)	2001-12-01-2006-07-31	2,0	Petrol	Van	110
Fiat	Ducato	Ducato (244)	2001-12-01-2006-07-31	2,3	Diesel	Van	110
Fiat	Ducato	Ducato (244)	2001-12-01-2011-12-31	2,8	Diesel	Van	128
Fiat	Ducato	Ducato (244)	2001-12-01-2006-07-31	2,0	Petrol	Bus	110
Fiat	Ducato	Ducato (244)	2001-12-01-2006-07-31	2,3	Diesel	Bus	110
Fiat	Ducato	Ducato (244)	2001-12-01-	2,8	Diesel	Bus	128
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,0	Petrol	Bus	110
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,0	Diesel	Bus	84
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,2	Diesel	Bus	101
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,8	Diesel	Bus	128
Fiat	Ducato	Ducato (244)	2001-12-01-2006-07-31	2,3	Diesel	Platform/Chassis	110
Fiat	Ducato	Ducato (244)	2001-12-01-2006-07-31	2,8	Diesel	Platform/Chassis	128
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,0	Diesel	Platform/Chassis	84
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,8	Diesel	Platform/Chassis	128
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,2	Diesel	Platform/Chassis	101
Peugeot	Boxer	Boxer III	2002-04-01-2006-06-30	2,0	Diesel	Van	84
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,8	Diesel	Van	128
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,2	Diesel	Van	101
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,0	Petrol	Van	110
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,8	Diesel	Bus	128
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,8	Diesel	Van	128
Peugeot	Boxer	Boxer III	2001-12-01-2006-06-30	2,8	Diesel	Platform/Chassis	128
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,0	Petrol	Van	110
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,0	Diesel	Van	84
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,2	Diesel	Van	101
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,8	Diesel	Van	128
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,8	Diesel	Van	128
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,0	Diesel	Platform/Chassis	84
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,2	Diesel	Platform/Chassis	101
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,8	Diesel	Platform/Chassis	128
Fiat	Ducato	Ducato (244)	2001-12-01-2006-07-31	2,8	Diesel	Bus	128
Fiat	Ducato	Ducato (244)	2001-12-01-2006-07-31	2,8	Diesel	Van	128
Fiat	Ducato	Ducato (244)	2001-12-01-2006-07-31	2,8	Diesel	Platform/Chassis	128
Citroën	Jumper	Jumper 230	2001-11-01-2002-04-30	2,0	Diesel	Van	84
Citroën	Jumper	Jumper 244	2003-02-01-2006-06-30	2,0	Petrol/Compressed Natural Gas (CNG)	Van	110
Citroën	Jumper	Jumper 244	2004-05-01-2006-06-30	2,8	Diesel	Platform/Chassis	146
Citroën	Jumper	Jumper 244	2004-04-01-2006-06-30	2,8	Diesel	Van	146
Citroën	Jumper	Jumper 244	2003-02-01-2006-06-30	2,0	Petrol/Compressed Natural Gas (CNG)	Bus	110
Peugeot	Boxer	Boxer II	2004-04-01-2006-06-30	2,8	Diesel	Van	146
Peugeot	Boxer	Boxer II	2004-04-01-2006-06-30	2,8	Diesel	Platform/Chassis	146
Fiat	Ducato	Ducato (244)	2002-05-01-2006-07-31	2,0	Petrol	Bus	110
Citroën	Jumper	Jumper 230	1996-10-01-1997-08-31	2,5	Diesel	Van	103
Peugeot	Boxer	Boxer II	2004-04-01-2006-06-30	2,8	Diesel	Bus	145
Citroën	Jumper	Jumper 244	2002-02-01-2006-06-30	2,8	Diesel	Platform/Chassis	128
Citroën	Jumper	Jumper 244	2002-04-01-2006-06-30	2,8	Diesel	Bus	128
